Aircraft ground power

400 Hz cables.

Ground power connections for aircraft and passenger boarding bridges.

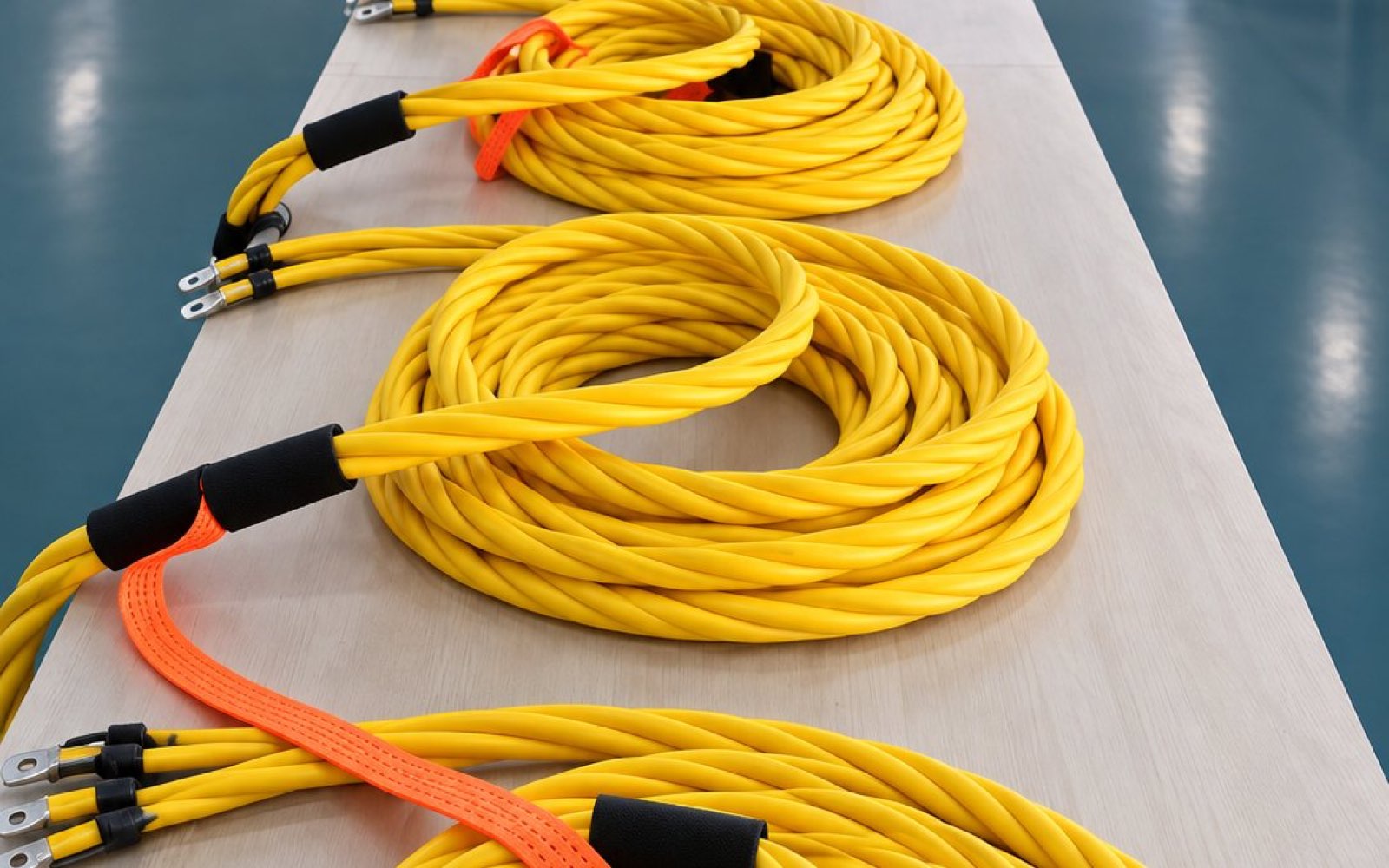

400 Hz cable coils from the HAR&CA range — 400 Hz cable range

HAR&CA cable range

Specified for your installation.

Frequency400 Hz

Rated voltage0.6/1 kV

Configurations1, 3, 4 & 7 core

OptionsControl wires & braiding

Request a quote ↗Browse constructions ↓

Send your conductor size, quantity and required lengths.

The range

Available constructions.

Construction	Conductor	Insulation	Outer sheath	Specification
Single Core	Class 5 stranded Copper	TPE	PUR	View details Voltage 0.6/1kV Conductor Class 5 stranded Copper Insulation TPE Outer Sheath PUR Enquire ↗
Single Core with Control Wires	Class 6 extra fine flexible stranded Copper	XLEPR	PUR w/ abrasion indicators	View details Voltage 0.6/1kV Conductor Class 6 extra fine flexible stranded Copper Insulation XLEPR Control Core Stranded Copper w/ TPE Outer Sheath PUR w/ abrasion indicators Enquire ↗
3 Core with Control Wires	Class 6 extra fine stranded Copper	PVC or XLPE	PUR	View details Voltage 0.6/1kV Conductor Class 6 extra fine stranded Copper Insulation PVC or XLPE Control Core Stranded Copper w/ XLPE Metallic layer Neutral Concentric Wires Outer Sheath PUR Enquire ↗
4 Core with Control Wires	Class 5 flexible or Class 6 extra fine flexible Copper	EPR	PVC	View details Voltage 0.6/1kV Conductor Class 5 flexible or Class 6 extra fine flexible Copper Insulation EPR Control Core Stranded Copper w/ Polyolefin Inner Sheath PO Outer Sheath PVC Enquire ↗
7 Core	Class 2 stranded or Class 5 flexible Copper	XLPE	PUR w/ integrated mesh braid	View details Voltage 0.6/1kV Conductor Class 2 stranded or Class 5 flexible Copper Insulation XLPE Inner Sheath LSZH Outer Sheath PUR w/ integrated mesh braid Enquire ↗
7 Core with Control Wires & Reinforcement	Class 5 flexible or Class 6 extra fine flexible Copper	XLEPR	PO	View details Voltage 0.6/1kV Conductor Class 5 flexible or Class 6 extra fine flexible Copper Insulation XLEPR Control Core Stranded Copper Outer Sheath PO Enquire ↗
7 Core with Copper Tape	Class 5 flexible stranded Copper	XLEPR	LSZH	View details Voltage 0.6/1kV Conductor Class 5 flexible stranded Copper Insulation XLEPR Metallic layer Copper Tape Outer Sheath LSZH Enquire ↗
7 Core with Aluminium Wire Armour	Class 2 stranded Copper	XLPE	PVC	View details Voltage 0.6/1kV Conductor Class 2 stranded Copper Insulation XLPE Armour AWA Outer Sheath PVC Enquire ↗
7 Core with Copper Wire Braid	Class 2 stranded or Class 5 flexible Copper	XLPE	PUR	View details Voltage 0.6/1kV Conductor Class 2 stranded or Class 5 flexible Copper Insulation XLPE Metallic layer Copper Wire Braid Outer Sheath PUR Enquire ↗
Single Core Grounding	Class 5 flexible stranded Copper	TPE	PUR	View details Voltage 0.6/1kV Conductor Class 5 flexible stranded Copper Insulation TPE Outer Sheath PUR Enquire ↗

Existing range constructions. Final configuration confirmed for your application.

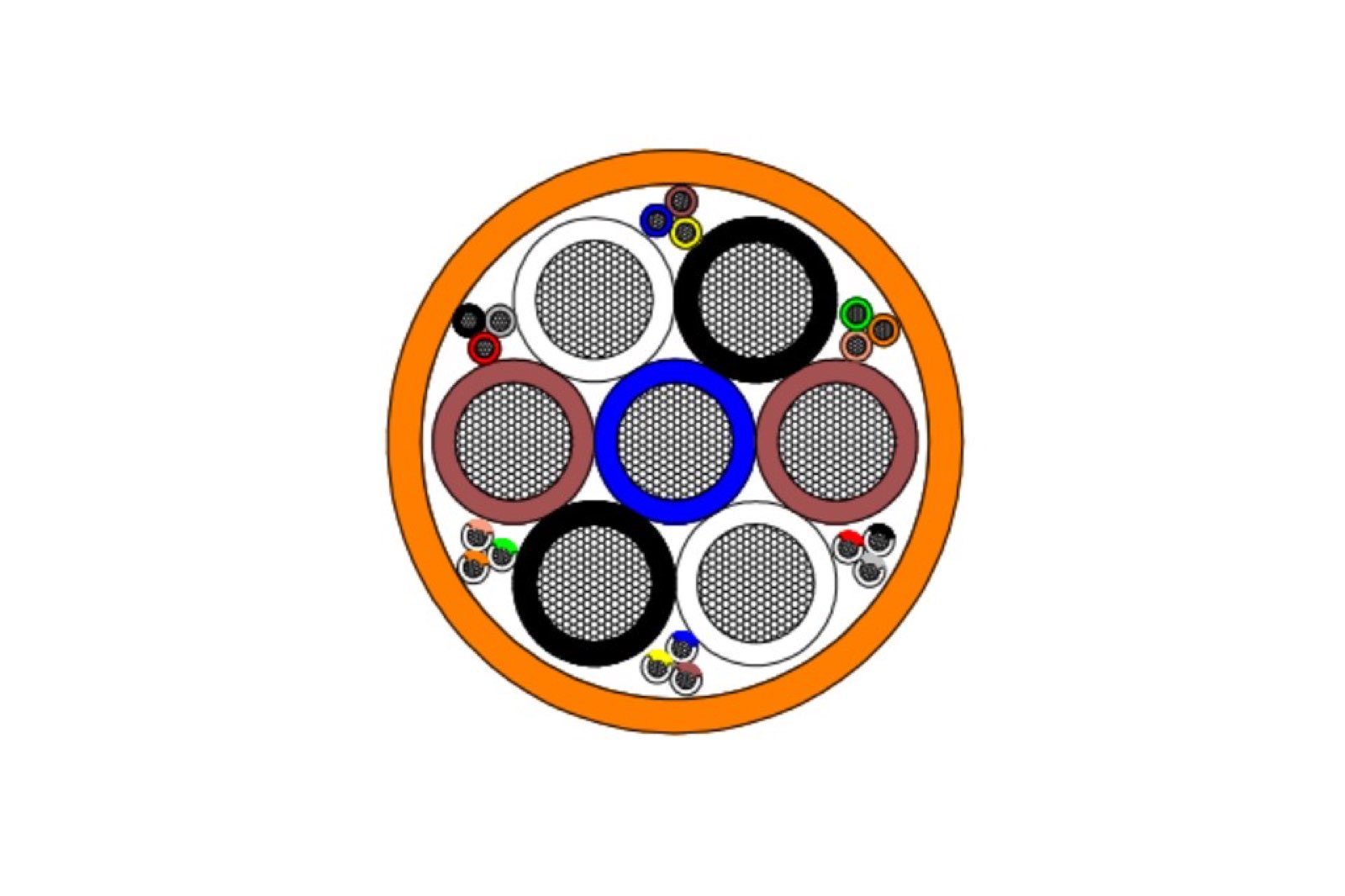

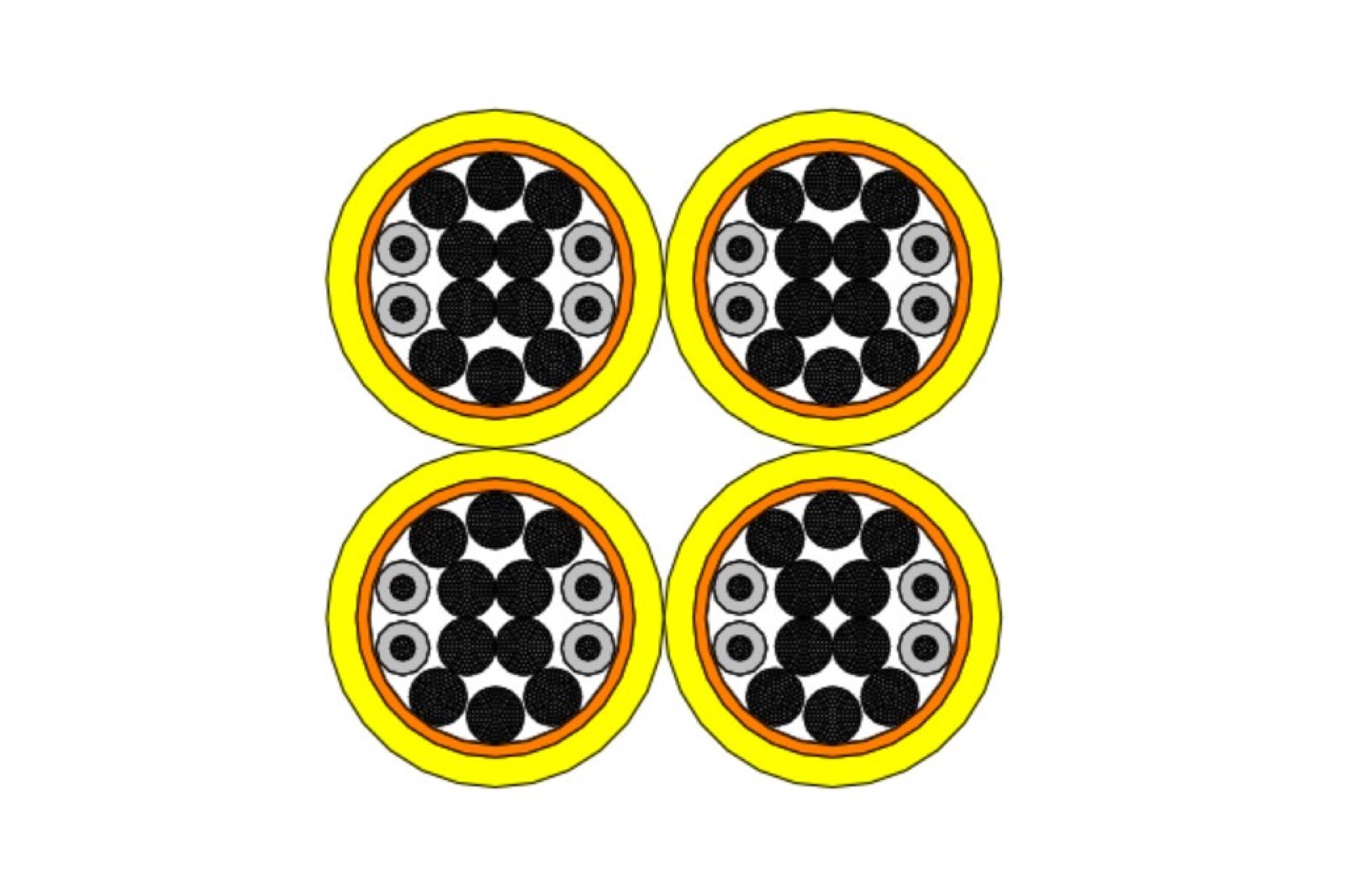

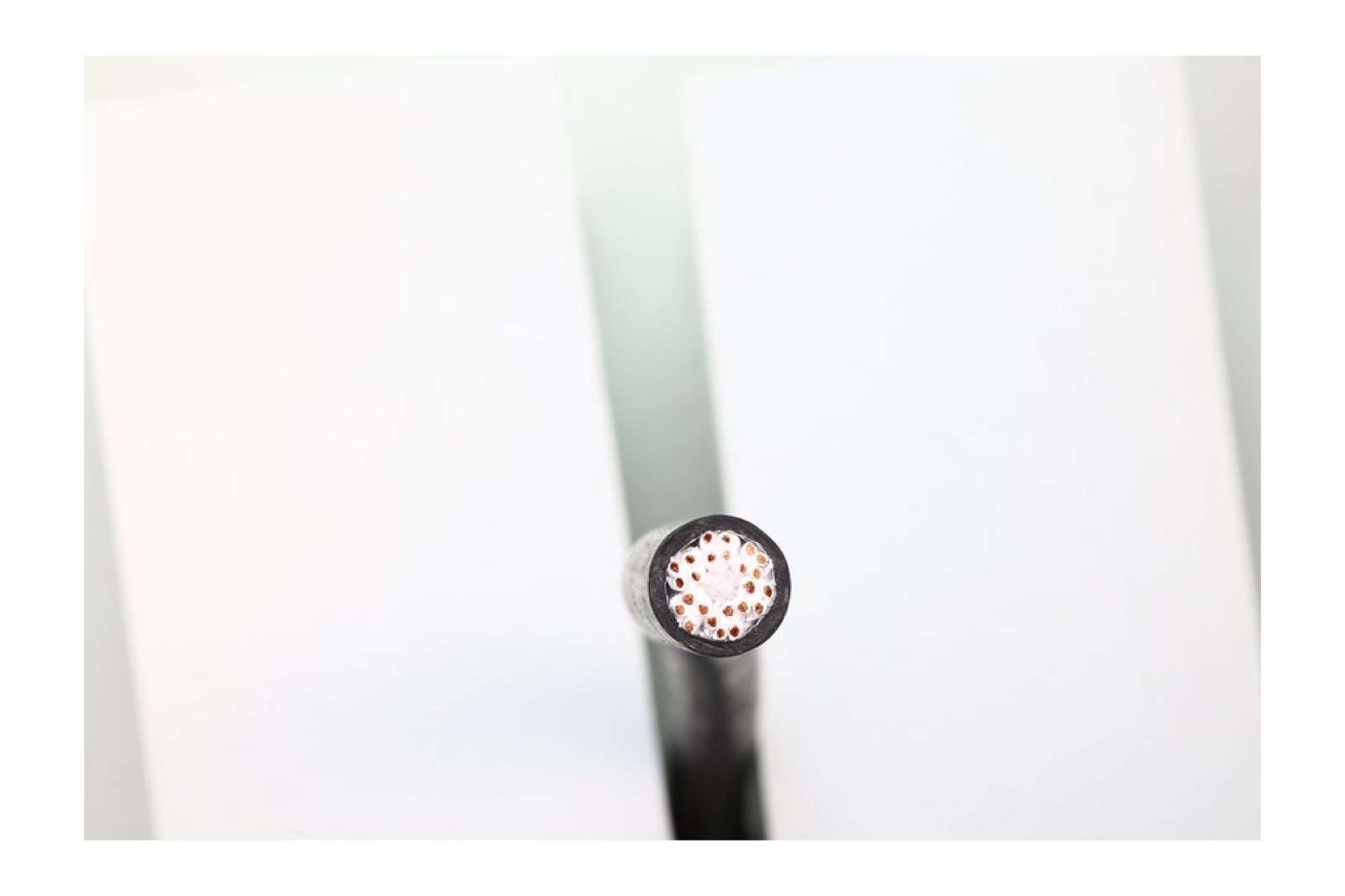

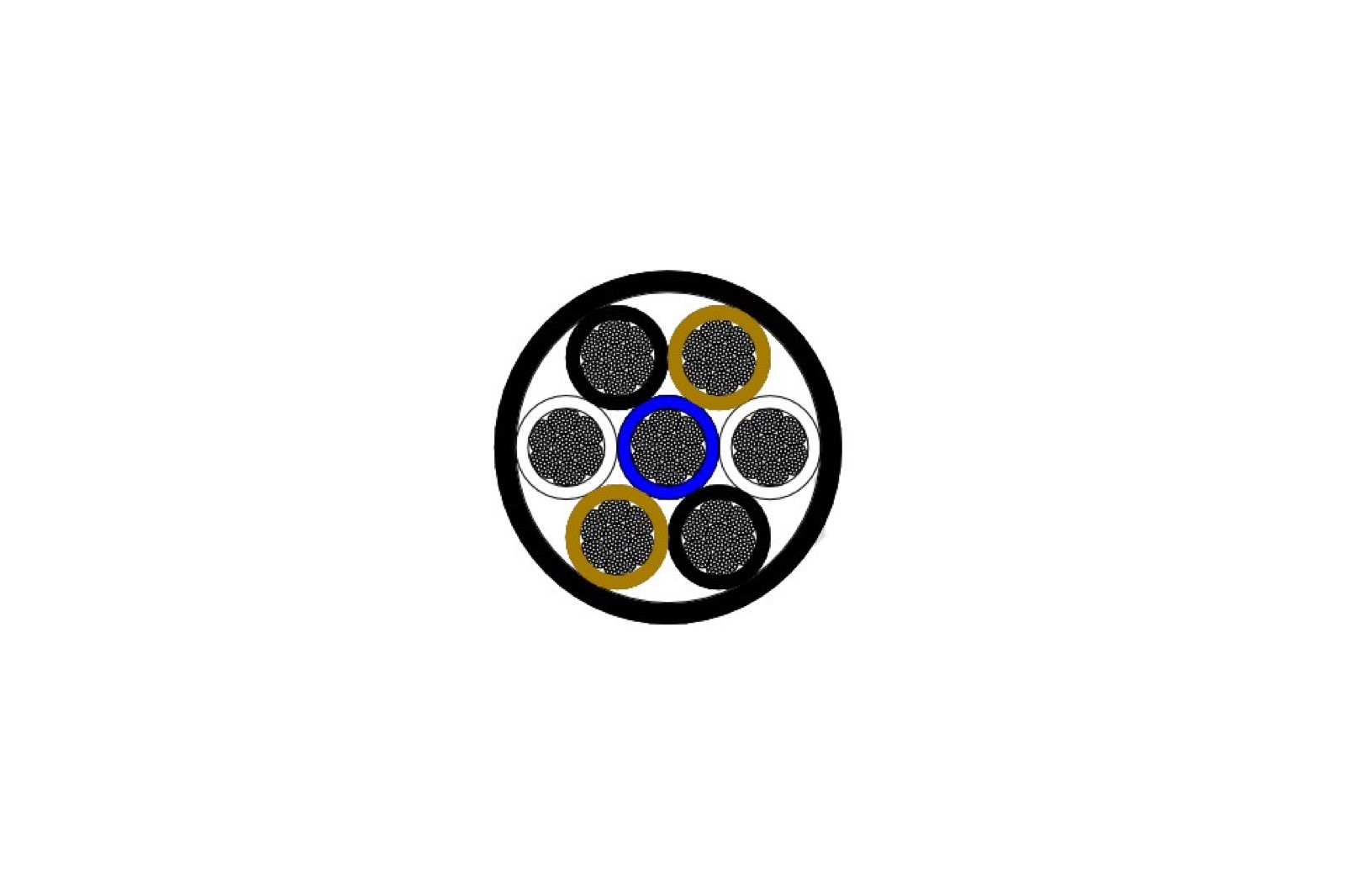

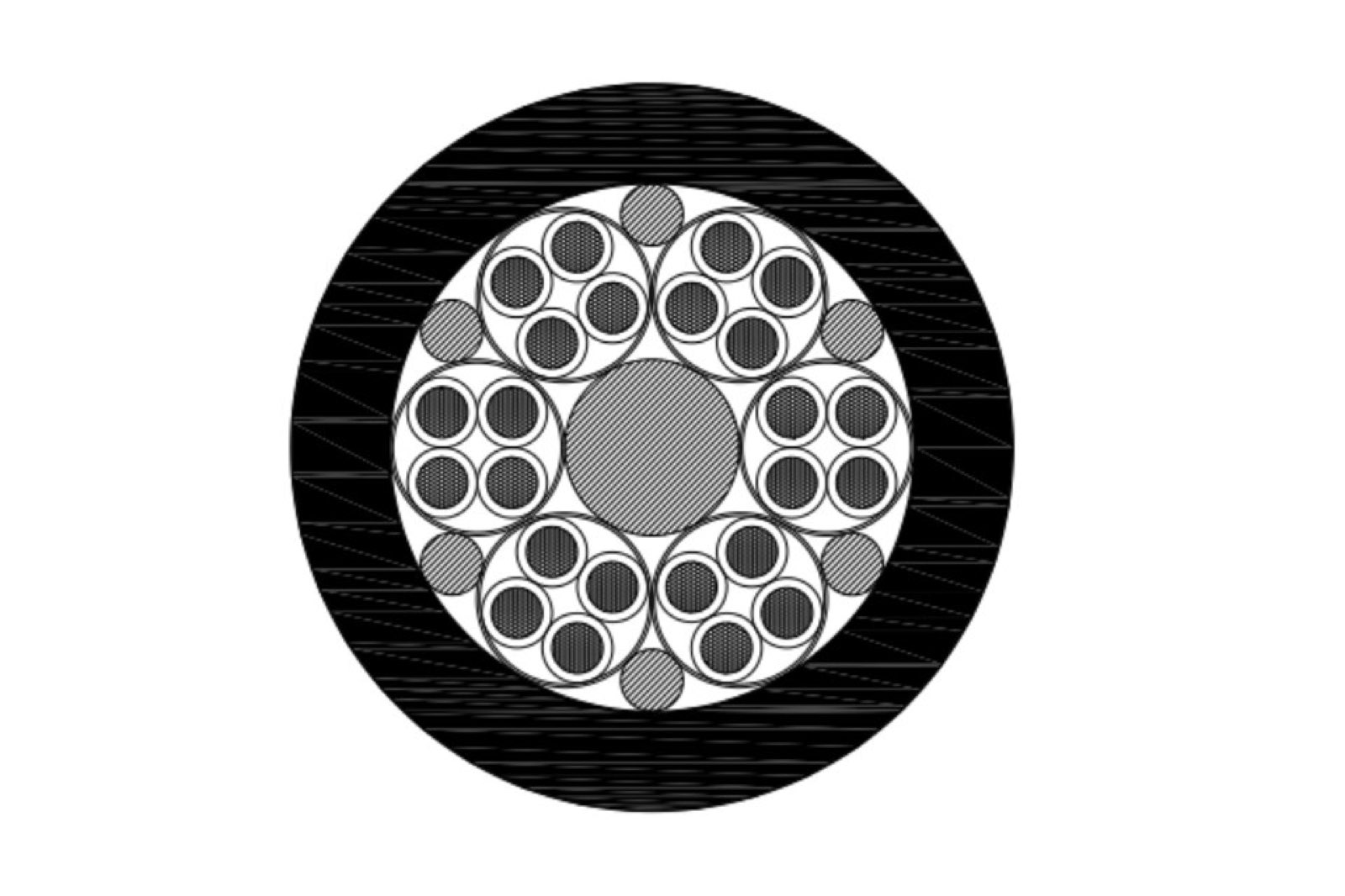

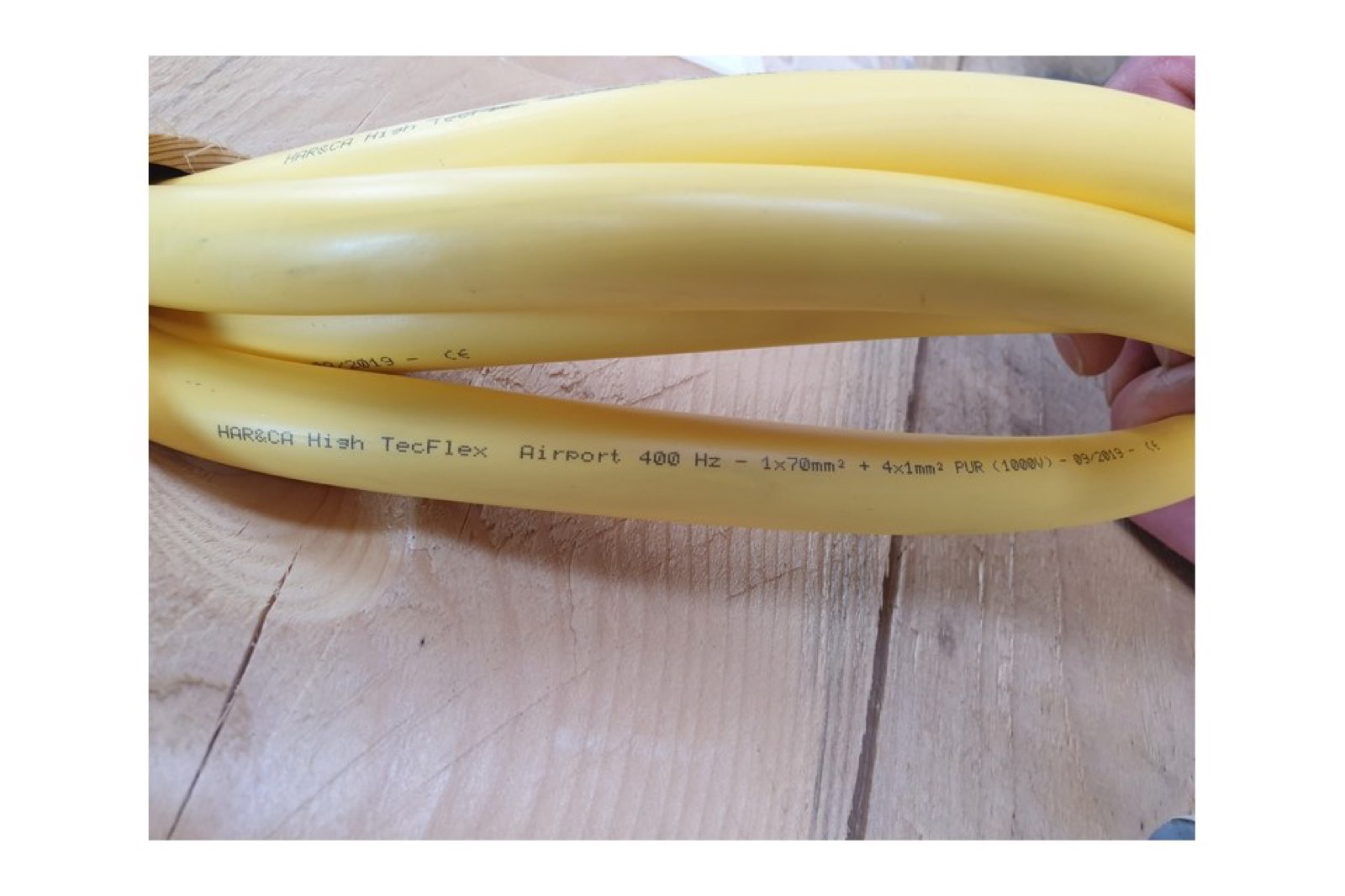

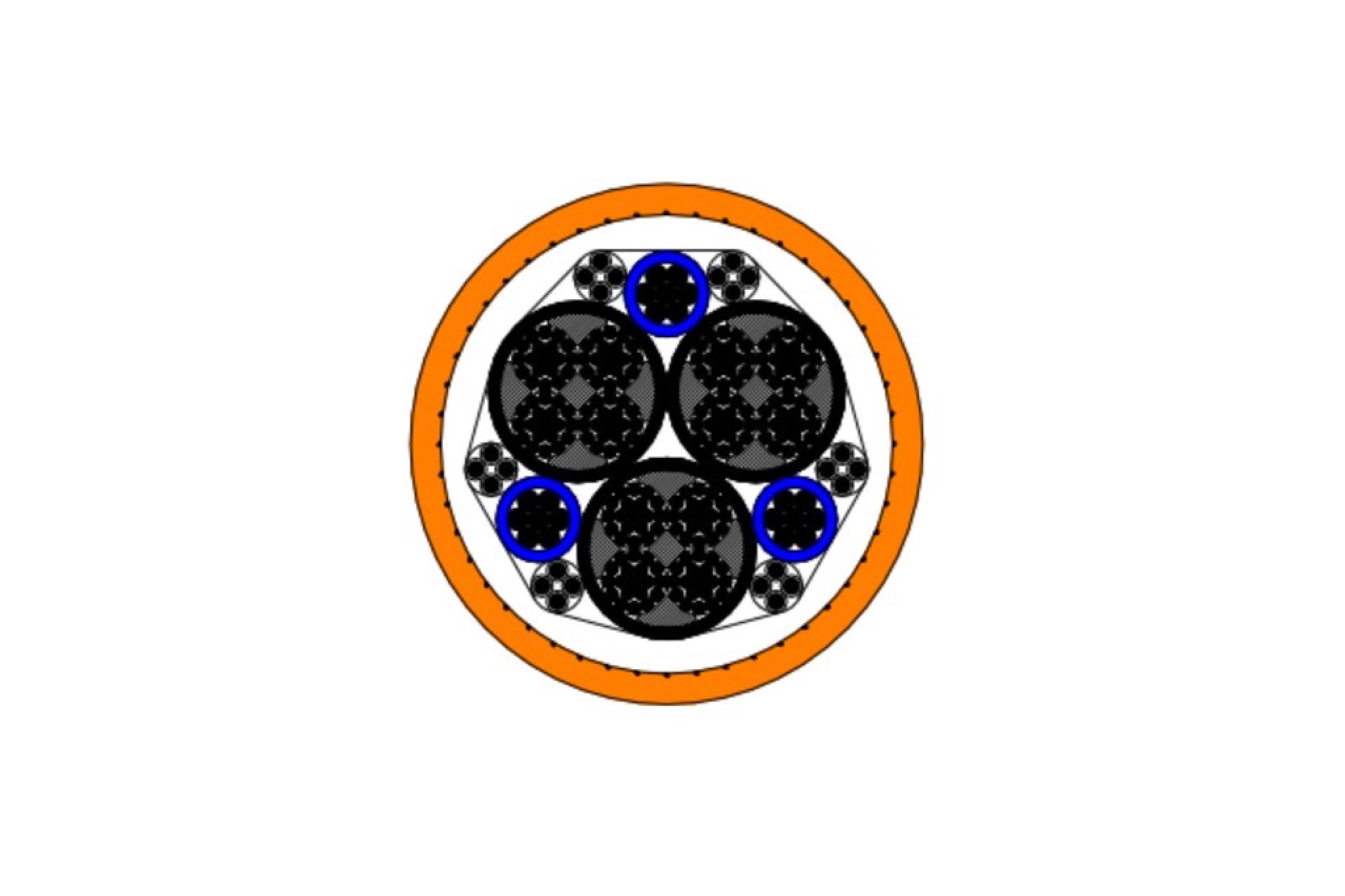

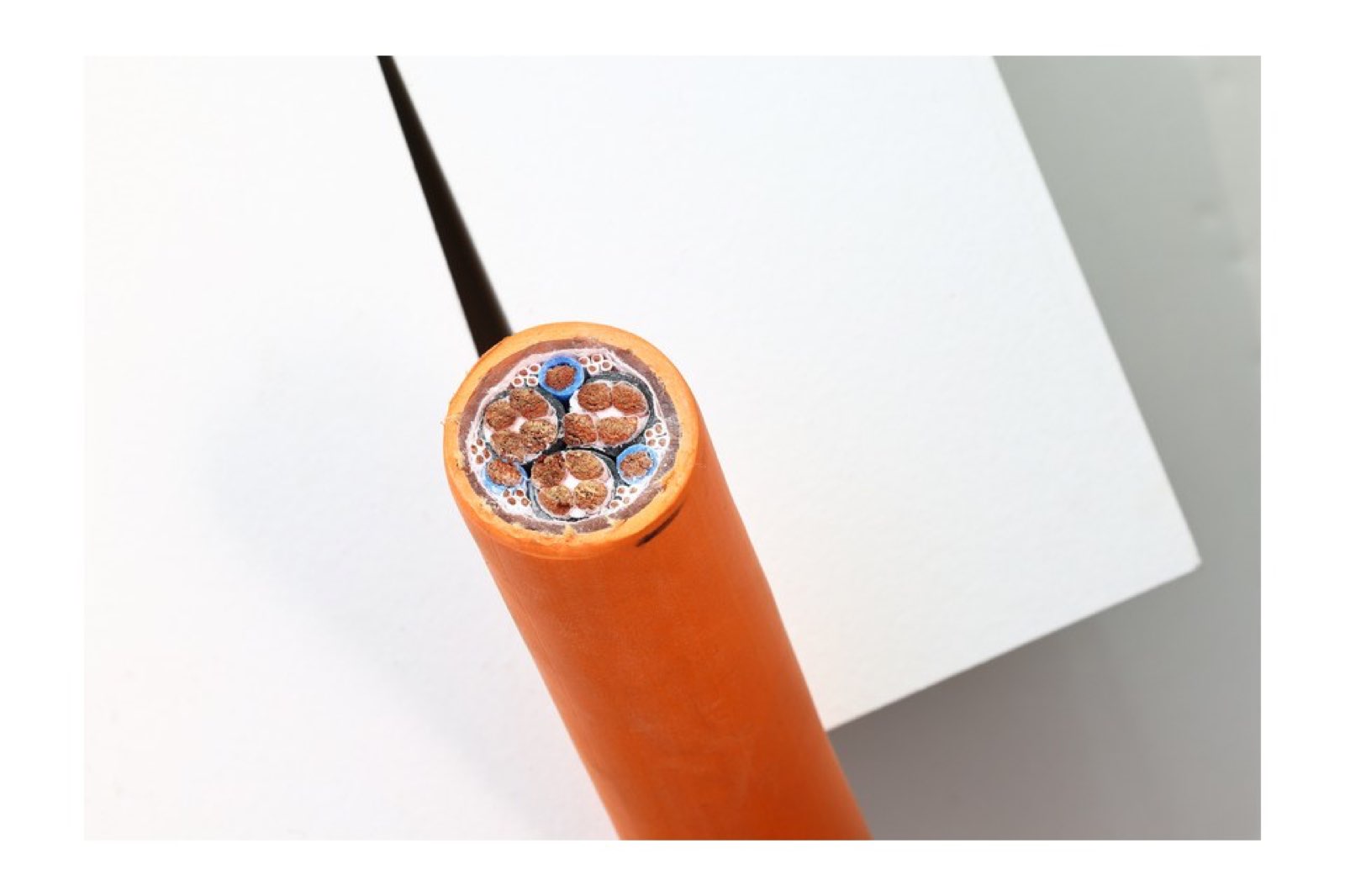

Product gallery

Cables & cross-sections.

From our existing 400 Hz catalogue. Select an image to view it full size.

Engineering information

Technical data.

Construction-specific information is available in the range above.

Rated voltage: 0.6/1 kV
Conductor options: Class 2, 5 or 6 copper
Sheath options: PUR, PVC or TPE, subject to construction
Braiding: Up to 80–85% coverage where specified
Armour option: Aluminium wire armour

Procurement

Dimensions & ordering.

Request dimensions for your selected construction and conductor size.

Include total quantity, cut lengths, installation conditions and required delivery date.

Request construction details ↗
