Industrial control & signal

Control cables.

Shielded multicore and twisted-pair cables in PVC and PUR.

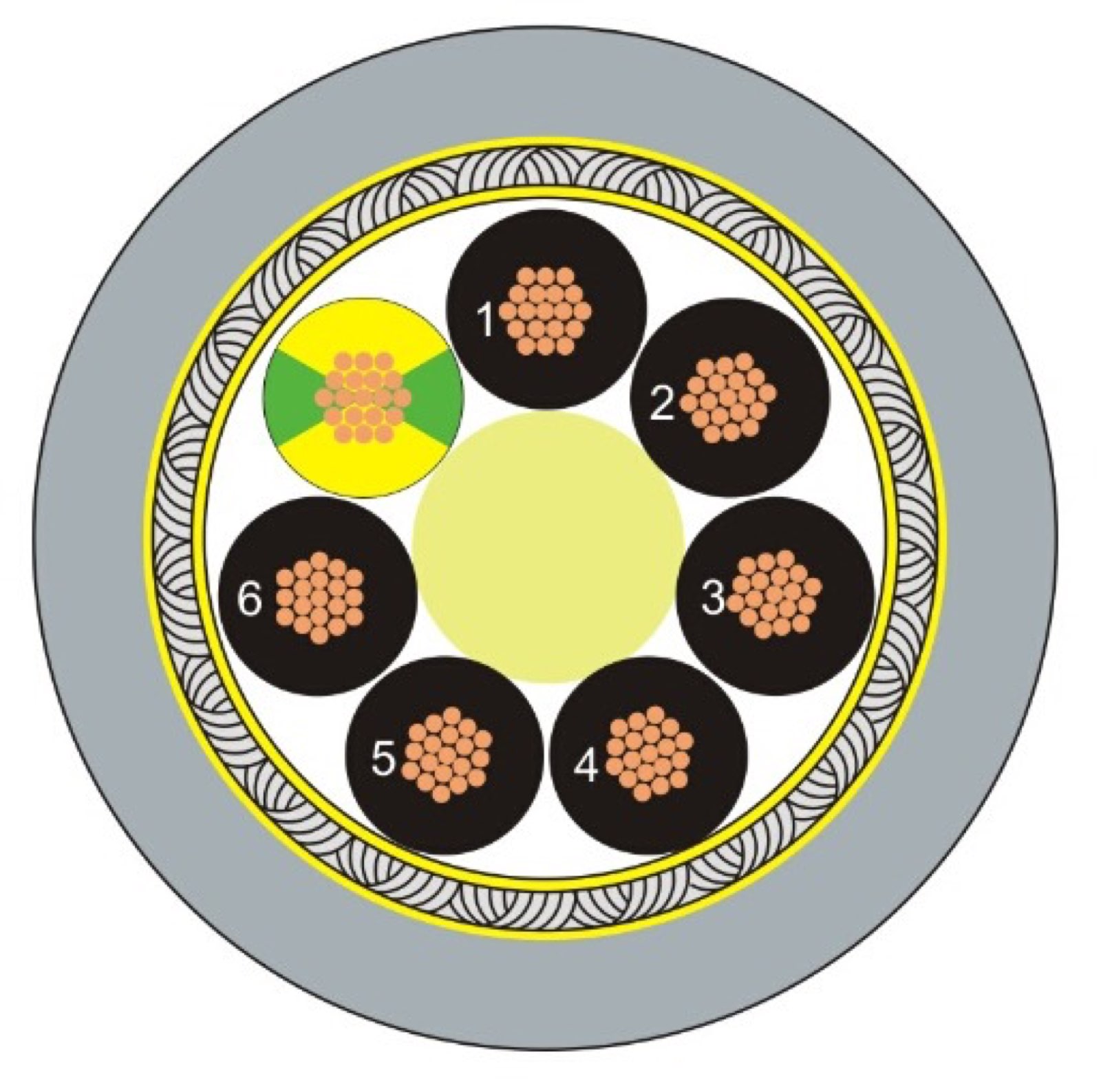

HAR&CA catalogue illustration of a braided multicore control cable — Catalogue construction illustration · not to scale

HAR&CA control range

Control cables.
Built around your application.

Sheath optionsPVC / PUR

Conductor sizes0.14–0.34 mm²

ConductorsClass 6 copper

Overall braidingTinned copper ≥85%

Explore our capabilities ↓

Tell us the core count, conductor size and installation conditions.

Our capabilities

Choose your construction.

Two construction routes.
PVC or PUR sheaths.

Multicore control cables

2–65 cores

Conductor sizes: 0.14 / 0.25 / 0.34 mm²
Sheath: PVC / PUR
Braiding: Tinned copper, ≥85%
Standard families: H-RGD / H-PGD

Catalogue options for the four listed families. Not every size and core-count combination is available. Requirements outside this range are assessed on enquiry.

Your requirement falls outside this range?

We’ll review your application and confirm what we can offer.

Discuss your requirements ↗

Catalogue reference

Explore standard constructions.

Series	Sheath	Construction	Catalogue range	Cross-section / mm²	Enquiry
H-RGD	PVC	Multicore	2–65 cores	0.14 / 0.25 / 0.34	Enquire ↗
H-RHD	PVC	Twisted pairs	2–50 pairs	0.14 / 0.25 / 0.34	Enquire ↗
H-PGD	PUR	Multicore	2–65 cores	0.14 / 0.25 / 0.34	Enquire ↗
H-PHD	PUR	Twisted pairs	2–50 pairs	0.14 / 0.25 / 0.34	Enquire ↗

Listed core and pair counts are discrete catalogue options. Confirm your exact configuration when enquiring.

Selection guide

Start with your installation.

Multicore or twisted pairs?View detailsHide details

Multicore · H-RGD / H-PGDChoose your required number of individual conductors.

Twisted pairs · H-RHD / H-PHDChoose your required number of paired conductors.

PVC or PUR?View detailsHide details

Standard sheaths: PVC and PUR. Need another sheath material? Ask us to review your application.

PVCCatalogue temperature: −20 to +80°C fixed; −5 to +80°C moving.

PURCatalogue temperature: −40 to +80°C. Confirm suitability for your installation.

Moving and cable-chain installationsView detailsHide details

Send travel length, speed, acceleration and bend radius. Motion limits depend on the selected construction.

Engineering information

Standard construction details.

Applies to the four catalogue families above. Other requirements can be assessed on enquiry.

Conductor: Class 6 copper
Insulation: Polyolefin
Overall braiding: Tinned copper, ≥85% coverage
Outer sheath: PVC or PUR
Standard sheath colour: Grey RAL 7040

Procurement

Specify your cable.

Send the series, core or pair count, conductor size, total quantity and cut lengths.

Include operating voltage, fixed or moving use, environmental conditions and delivery date.

Request a quote ↗
