VFD cables.
Shielded power cables for variable frequency drive systems.
Power. Control.
A reliable connection.
*As stated in the supplied specifications; subject to final approval.
Between the drive
and the motor.
A variable frequency drive adjusts an electric motor’s speed. The cable carries power from the drive to the motor.
Rapid switching creates electrical noise and voltage stress. Cable insulation, shielding and grounding must suit the drive system.
Typical VFD applications include pumps, fans, conveyors and machine tools. Cable suitability depends on the installation.
Find your construction.
| HAR&CA code | Power + ground / mm² | Insulation | Shielding | Enquiry |
|---|---|---|---|---|
| H-RGD012-3C3G016 | 3 × 3.3 mm² power + 3 × 1.31 mm² ground | XLPE | Copper tape | Enquire ↗ |
| H-RGD010-3C3G014 | 3 × 6 mm² power + 3 × 2.08 mm² ground | XLPE | Copper tape | Enquire ↗ |
| H-RGD006-3C3G012 | 3 × 13.3 mm² power + 3 × 3.3 mm² ground | XLPE | Copper tape | Enquire ↗ |
| H-RGD004-3C3G012 | 3 × 21.2 mm² power + 3 × 3.3 mm² ground | XLPE | Copper tape | Enquire ↗ |
| H-RGD002-3C3G010 | 3 × 35 mm² power + 3 × 6 mm² ground | XLPE | Copper tape | Enquire ↗ |
| H-RGD001-3C3G010 | 3 × 50 mm² power + 3 × 6 mm² ground | XLPE | Copper tape | Enquire ↗ |
| H-RGD1-0-3C3G010 | 3 × 53.5 mm² power + 3 × 6 mm² ground | XLPE | Copper tape | Enquire ↗ |
| H-RGD2-0-3C3G010 | 3 × 70 mm² power + 3 × 6 mm² ground | XLPE | Copper tape | Enquire ↗ |
| H-RGD3-0-3C3G008 | 3 × 95 mm² power + 3 × 8.4 mm² ground | XLPE | Copper tape | Enquire ↗ |
| H-RGD006-4C4G014 | 4 × 16 mm² power + 4 × 2.5 mm² ground | XLPO | Tape + tinned copper braid | Enquire ↗ |
| H-RGD004-4C4G014 | 4 × 25 mm² power + 4 × 2.5 mm² ground | XLPO | Tape + tinned copper braid | Enquire ↗ |
| H-RGD002-4C4G012 | 4 × 35 mm² power + 4 × 4 mm² ground | XLPO | Tape + tinned copper braid | Enquire ↗ |
Metric sizes shown as supplied. Final sizes and construction require confirmation.

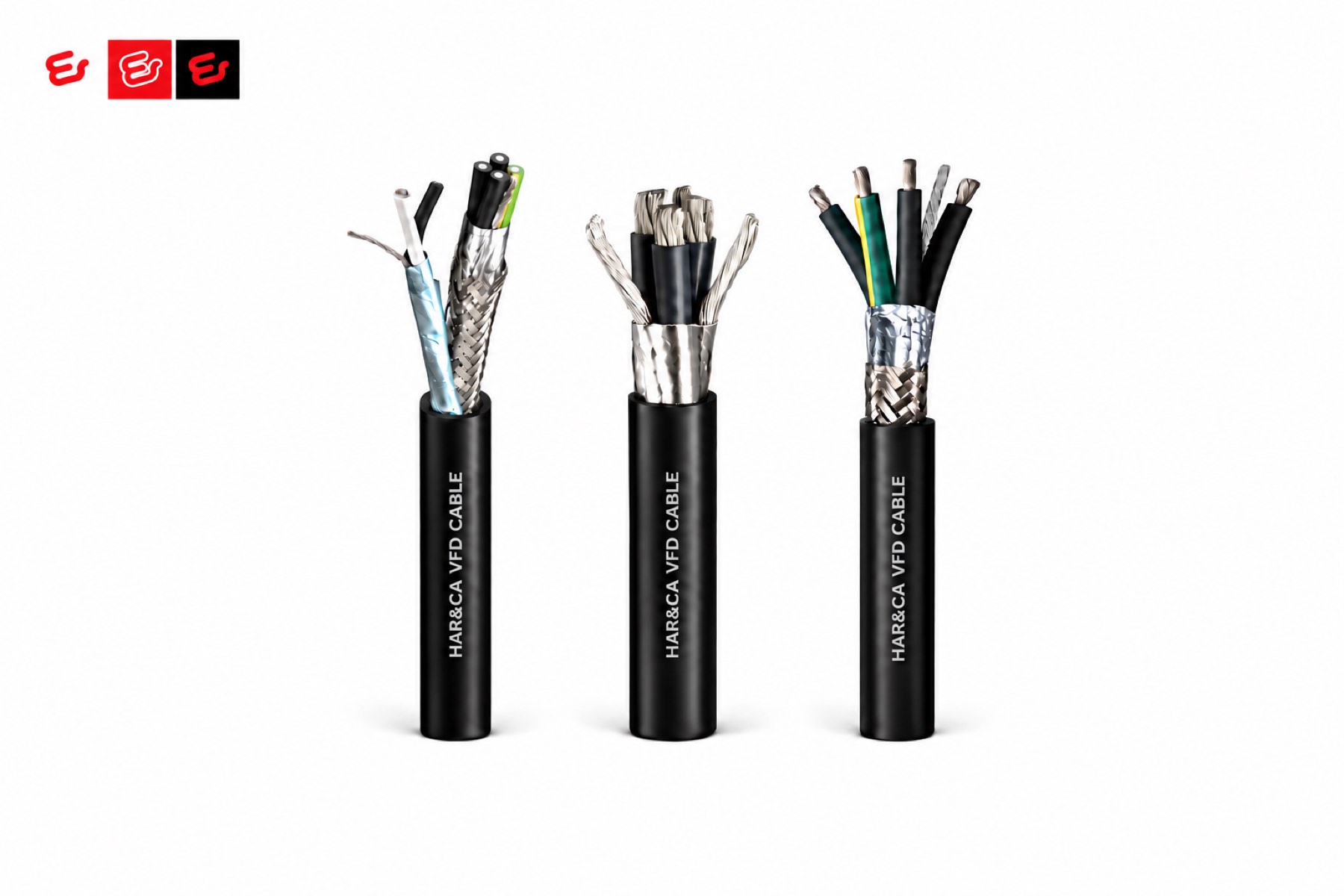

Two construction groups.
3 power + 3 ground conductors
InsulationXLPE
ShieldingCopper tape
ConductorBare copper, Class 5
Outer jacketPVC
4 power + 4 ground conductors
InsulationXLPO
ShieldingAluminium / polyester / aluminium tape with tinned copper braid
ConductorBare copper, Class 5
Outer jacketPVC
Specify your requirement.
Send the product code, total quantity, cut lengths and required delivery date.
Include drive voltage, motor details, cable run length and installation conditions.
Request a quote ↗
